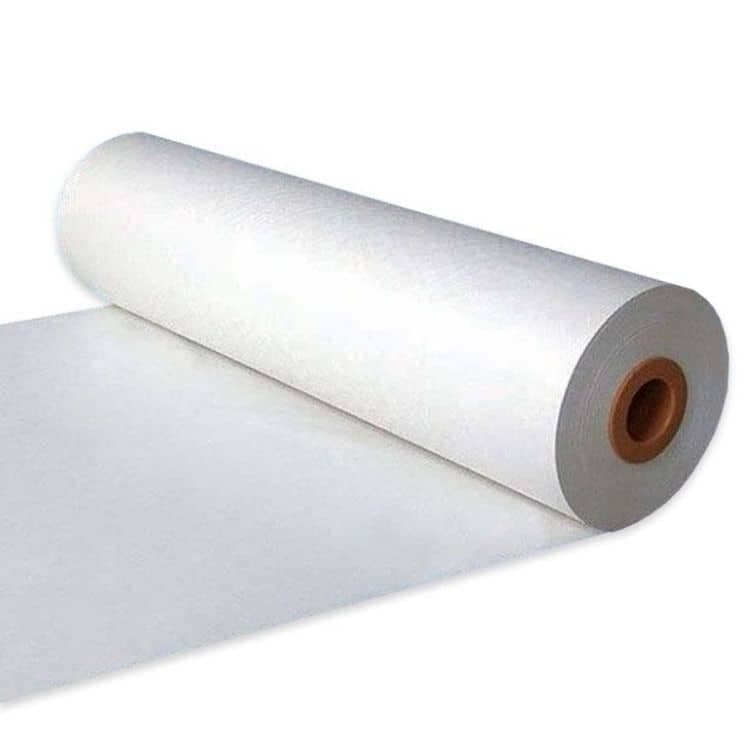

Nomex 410 Electrical Insulation Paper
SKU: NOMEX 410
Brand: Dupont
Pricing on request
Specifications
| Part Number | NOMEX 410 |
|---|---|
| Material | Aramid insulation paper |
Description
Nomex 410 is the original form of Nomex paper, a family of electrical insulation sheets with high inherent dielectric strength, mechanical toughness, flexibility and resilience. It is made in thicknesses from 0.05 mm to 0.76 mm (2 to 30 mil). At 0.13 mm the typical AC rapid-rise dielectric strength is 28 kV/mm, and temperatures up to 200°C have little or no effect on its properties.
The manufacturer describes it for almost every electrical sheet insulation application, including dry-type and liquid-immersed transformers, motor insulation and generator insulation.
Angad Aviation supplies this product with full traceability and documentation — request a quote for current pricing, pack sizes and lead time.
- Manufacturer: DuPont
- Part No.: NOMEX 410
- Type: Insulation paper
- Thickness range: 0.05 mm to 0.76 mm (2 to 30 mil)
- Dielectric strength, 0.08 mm: 22 kV/mm (565 V/mil), AC rapid rise
- Dielectric strength, 0.13 mm: 28 kV/mm (715 V/mil), AC rapid rise
- Thermal: Properties maintained for at least 10 years of continuous exposure at 220°C
- Typical pack sizes: Sheet and slit rolls, 0.05 mm to 0.76 mm thick, widths 4.8 mm to 914 mm
Frequently asked
What thicknesses does Nomex 410 come in?
The manufacturer lists Nomex 410 from 0.05 mm to 0.76 mm (2 to 30 mil), in steps including 0.08, 0.13, 0.18, 0.25, 0.30, 0.38, 0.51 and 0.61 mm.
What is the dielectric strength of Nomex 410?
Typical AC rapid-rise values run from 18 kV/mm at 0.05 mm up to 34 kV/mm at 0.18 mm. For dry-type designs the manufacturer recommends keeping continuous stress at or below 1.6 kV/mm (40 V/mil) to limit partial discharge.
Can I get the technical and safety data sheets?
Yes. Ask for the current manufacturer technical data sheet and safety data sheet when you request a quote.
How do I order NOMEX 410?
Request a quote with the part number, quantity and delivery country. Angad Aviation confirms availability, pack size and delivery terms. Every order ships with full traceability and documentation.
